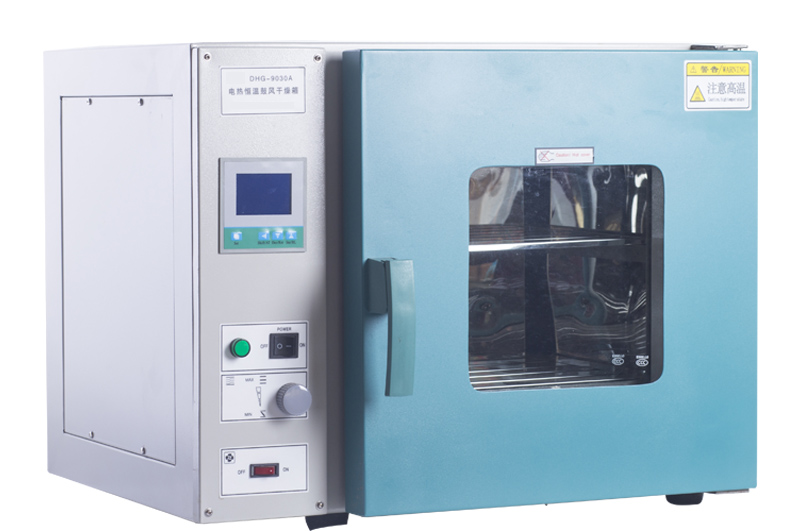

Blast Dry Oven

Brief introduction:

Blast dry oven widely used in biochemical, chemical and pharmaceutical, health care, agricultural research, environmental protection and other research applications for powder Drying and roasting, as well as disinfection and sterilization of glass containers used. Particularly suitable for Drying heat-sensitive, easily decomposed, and the complex composition of easily oxidized material items for fast and efficient Drying

Product feature:

1. Effective, gentle drying without damaging the material being dried.

2. Vacuum drying also minimizes the risk of scaling and the formation of oxidation residues.

3. coordinated, modular system with vacuum pump and vacuum module.

4. 6020,6050 both adopt jacketed vacuum glass door. On one hand, it keeps the temp in room; onthe other hand you can see the dried instruments clearly.

5. The vacuum tube around makes room temperature more uniform, avoiding organic connectingwith fires burring. Set temp and control are all intelligent digital display, high accuracy.

6. Temperature range from ambient +5 °C to 250 °C.

7. Vacuum range: 0 to 0.1 MPa. (analog vacuum gauge) - Drying a solvent in vacuum lowers its boiling point, thereby making the separation process easier and eliminating the need to use high temperatures.

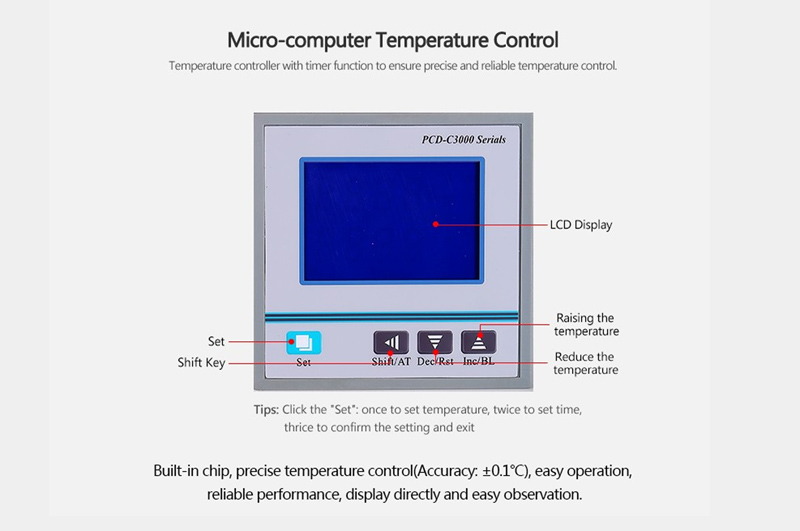

8. Microprocessor PID control / Temperature calibration / Automatic tuning.

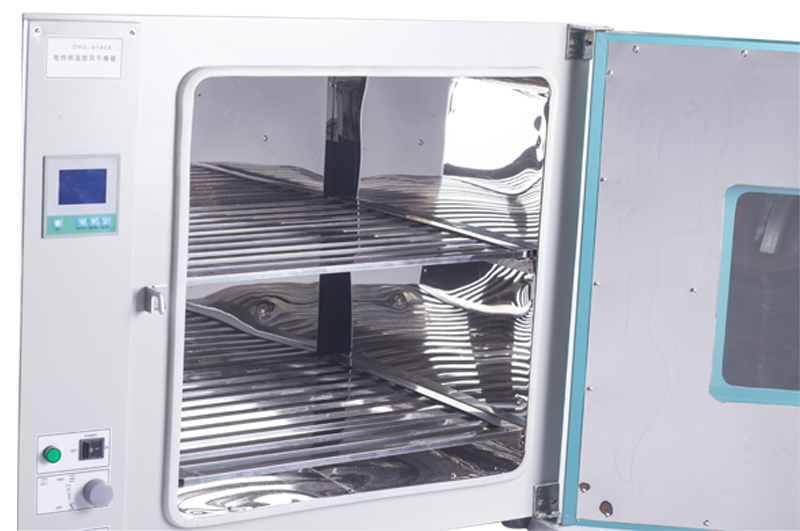

9. Uniform heat distribution from block type heater attached to the chamber exterior to the anodized aluminum shelves.

Technical Data:

Power Supply220V  50/60Hz
Shell MaterialSpray-paint Anti-corrosion
Liner Material304 Stainless Steel
Temp. RangeRT+10~250°CRT+10~300°C
Temp. Stability±1.0°C
Temp. Analysis0.1°C
Working Temp.+5~40°C
Input Power(W)850110015502050350040006000
Chamber Capacity (L)4072151216393672960
Inner Dimension (W*D*H, mm)340*340*340400*400*450550*500*550600*600*600750*750*700840*600*13351000*600*1600
Overall Dimension (W*D*H, mm)630*600*500680*690*630830*800*720900*870*8401050*950*920980*800*17101140*800*2150
Shelves (Pcs)12345
Time Range1~9999 min
Optional ConfigurationExplosion-proof

We are professional manufacturer!!! . If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!
