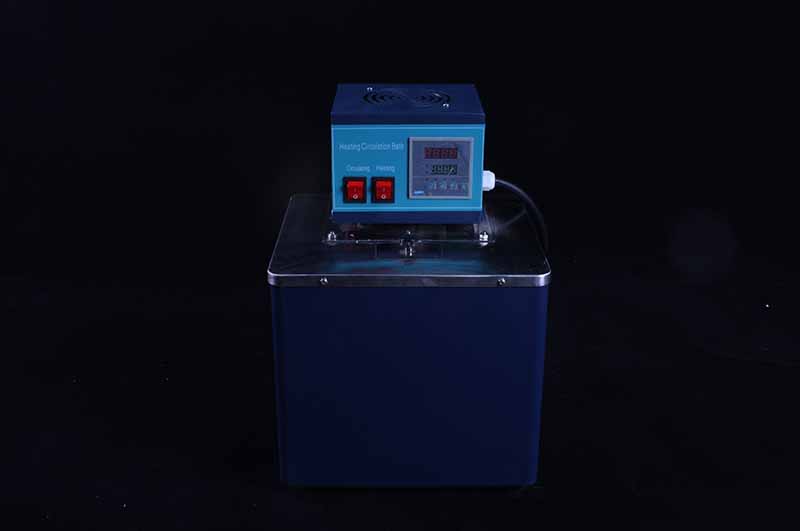

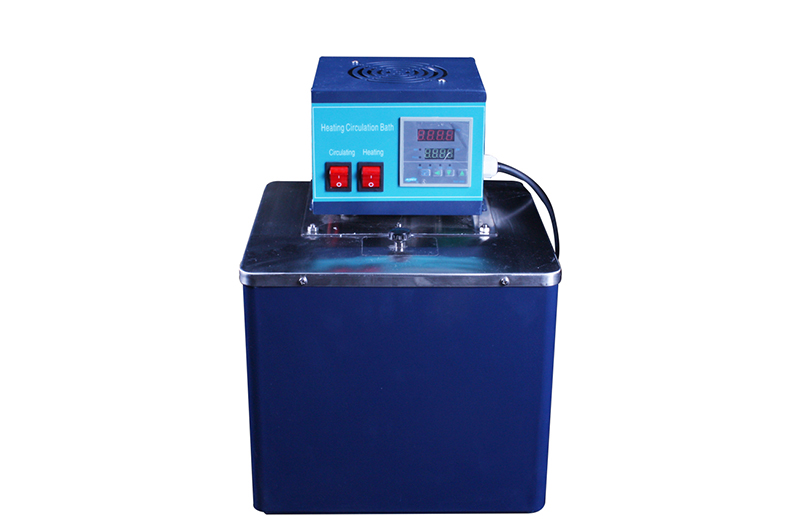

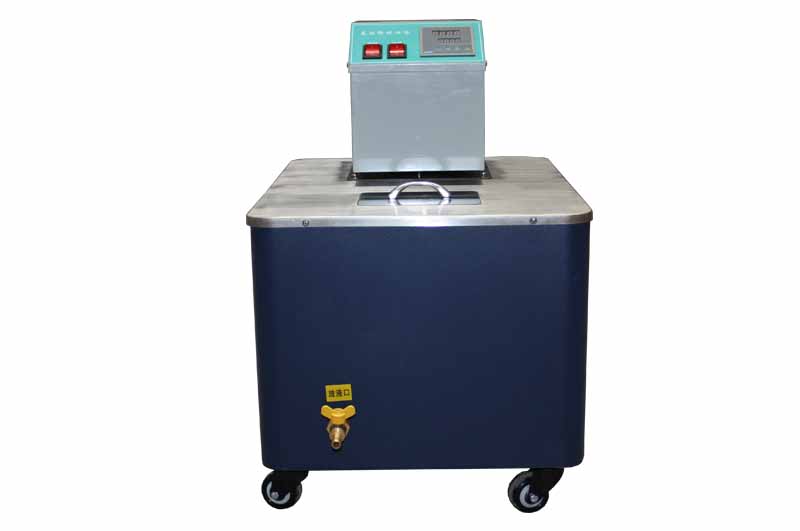

GY series heating circulator


  GY series circulator is the new developed instrument by our company, is the essential equipment for high temperature reaction coordinated with double-layer glass reactor, stainless steel reactor and enamel reactor. It has advantages of fast heating, uniform temperature, accurate temperature control, and fast cooling, etc. Widely equipped with lab and semi-works, and received extensive acclaimed from most users.



1. Adopted full stainless steel high-temperature shield pump, with features of stable performance, reliable quality and no leakage.

2. Digital temperature control, easy operation and striking;

3. Digital PID control, accurate temperature control and small warm-stamping;

4. The circulating system is made of stainless steel,copper material, with features of rust-proof and corrosion resistance;

5. Adopted solid state relay to control circuit, contactless, no naked fire, and long service life.



Technical parameters:

Frame material304 Stainless steel
Max using temperature300℃300℃300℃300℃
Oil pump power(W)40180180380
Circulating flow5-10L/min20-32L/min30L/min25L/min
Circulating lift8-12m8-12m8-12m8-12m
Heating power(W)2000300050008000
Temp controllingIntelligent temperature control
Temp display methodK type sensor digital display
Temp Precision±1℃
Inner size (mm*mm)250*240390*280390*380440*380
Cabinet size (mm*mm*mm)305*305*440500*400*315500*500*315550*500*350
Exterior size (mm*mm*mm)435*305*630
Packing size (mm*mm*mm)590*460*460  0.12 m2730*500*830 0.3m2730*600*830 0.36m2780*600*865
Packing weight (KG)16333538

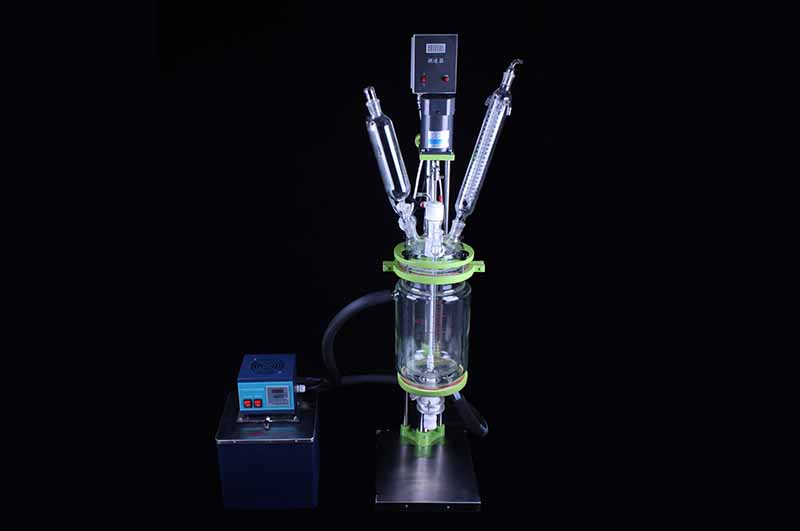

Tips: GY-5 Can match for the 1-5 liters jacketed glass reactor,GY-20 match for the 10-20 liters jacketed glass reactor,GY-50 match for the 30-50 liters glass reactor ,GY-100 match for 80-100 liters jacket glass reactor.

We are professional manufacturer!!! . If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!
