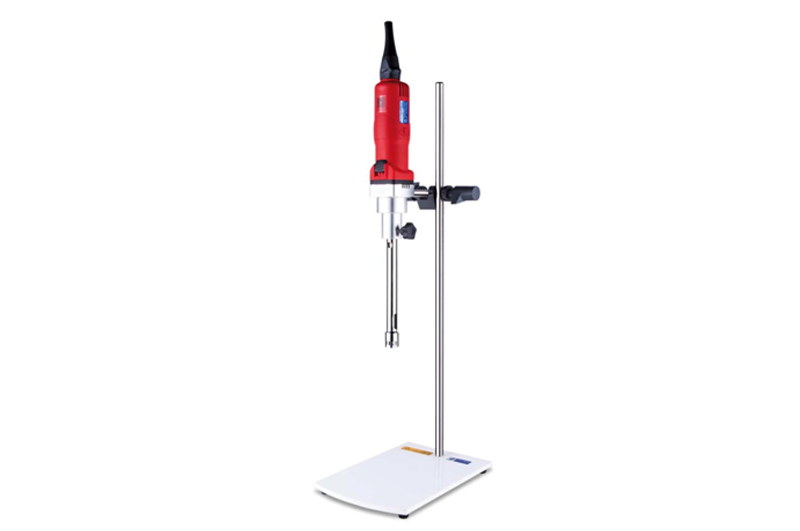

FA25 Batch High Shear

Brief introduction

High-speed motor speed up to 28000 rpm, Tip speed up to 27 m/s, with a choice of agitators. Can jog or continuous operation, easy to meet a variety of requirements for dispersed emulsion experiments, making laboratory mixing fun.
Applicable

Different kind of agitators can be used for dispersing, Emulsifying, Homogenizing, Grinding  and Mixing of high Viscosity materials. It can also be used for dispersing, homogenizing & breaking of animal and plant tissues.

Technical Parameter

.Motor power—500W

.Motor supply—220V，50/60Hz

.Working capacity (H₂O) —0.2-7000ml

.Maximum working- viscosity—8000CP

.Speed range- (no-load) —10000-28000rpm

.Speed display—Scale

.Speed control—Stepless

.Medium-contact material—SS316L

.Shaft sleeve material—PTFE

.Standard dispersing agitator—25F

.Permissible temperature range—5-40℃

.Permissible humidity range—80%

.Process type—Batch processing

.Work frame—stand base Standard

.Overall dimensions—210×290×675

.Weight~7.1kg

.Optional Tools

.Package—Carton
