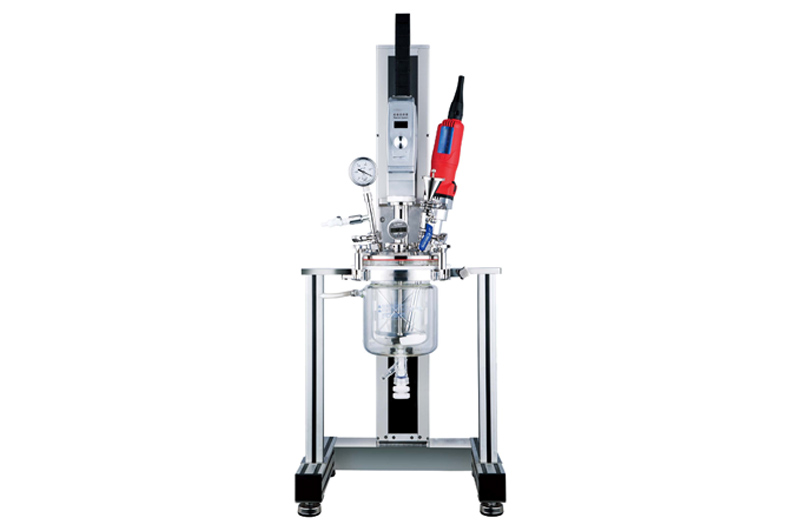

YK1-5L Homogeneous emulsion system reactor

Brief introduction

Our lab reactors have a working capacity of 1 L, 2 L and 5 L, suitable for dispersing, emulsifying, homogenizing, mixing, reacting, fermenting, cream perpetrating, polymerizing, and synthesis reacting under vacuum or pressurized conditions. Incorporating a macro mixing system, micro emulsifying system, vacuum system, temperature control system, and multi-sensor detecting system, they can fully simulate industrial production.

Technical parameter

·Power supply-----220V，50/60Hz

·Minimum mixing capacity-----300ml (YK-1L) 500ml (YK-2L) 1000ml (YK-5L)

·Minimum emulsifying capacity-----500ml (YK-1L) 1000ml (YK-2L) 2000ml (YK-5L)

·Maximum emulsifying capacity-----1000ml (YK-1L) 2000ml(YK-2L) 5000ml (YK-5L)

·Maximum working temperature-----120℃

·Vacuum condition------0.0975MPa

·Maximum working viscosity-----100,000CP

·Mixer motor power-----50W

·Mixer speed range-----10-200rpm

·Standard mixer agitator-----Anchor ribbon agitator with scrapper

·Scrapper material-----PTFE

·Homogenizer motor power-----500W

·Homogenizer speed range-----10000-28000rpm

·Standard homogenizer agitator-----20DG

·Openings on cover-----Homogenizer opening with hopper opening thermometer opening,vacuum opening,3 spare opening

·Lifting height-----210

·Medium-contact material-----SS316L, borosilicate glass, FKM

·Outer diameter of vacuum opening-----10

·Jacket inlet/outlet size-----12

·Permissible temperature range-----5-40℃

·Permissible humidity range-----80%

·Overall dimensions-----470×420×1200

·Weight-----35kg

·Package-----Wooden case
