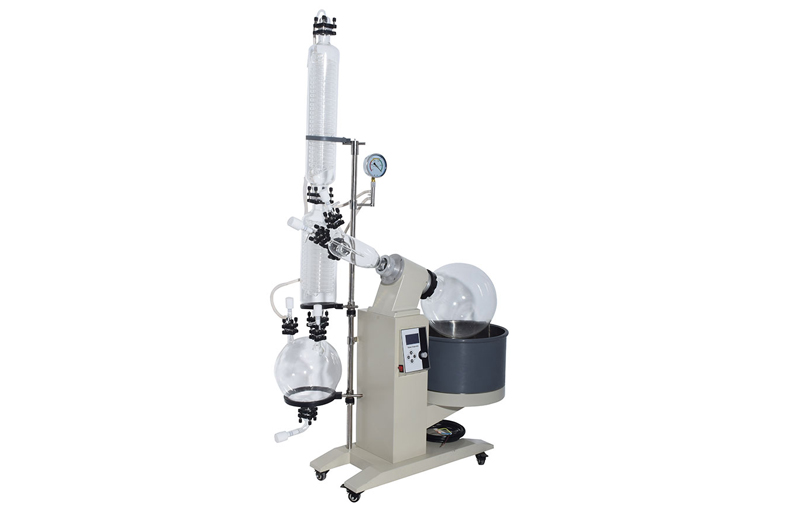

Industrial 20L rotary evaporator with electric lift


Rotary evaporator (or Rotavapor/ Rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.

Rotary evaporator makes the material be rotated to thin film, under the constant temperature and negative pressure. It can be evaporated efficiently, very suitable for the crystallization, separation and solvent recovery for heating sensitive materials. Some models can also be used for reflux extraction. It is an important equipment for scientific research and production in Biology, Medicine, Chemical and Food Industry.

Industrial 50L rotary evaporator with electric lift



Advantages

● Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.

● Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.

● Teflon discharge valve is corrosion resistant and contamination free.

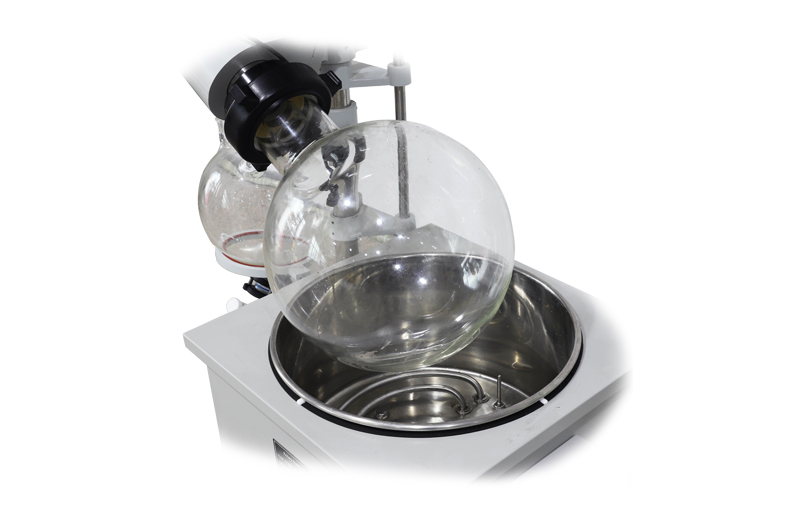

● Water bath jacket protecting operator from scalding by hot liquid.

● Motorized water bath lifting for precise control.

 Quick clamp connections for easy and fast installation.

● PID temperature controller ensures accurate temperature control is maintained.

● Optional stainless steel evaporating flask carrier with silicone cushions is designed for safer and easier loading and unloading of the flask. It can also be used as a flask stand.



Application

Large capacity and large opening of evaporating flask give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, and solvent evaporates more efficiently under vacuum condition. It can be used for pilot-scale production in biology engineering, pharmaceutical industry, chemical industry and food processing. It usually works with water circulating vacuum pump, diaphragm vacuum pump, recirculating chiller, constant-temperature circulator, low temperature circulating pump.


Product Detail

Industrial 50L rotary evaporator with electric lift




Industrial 50L rotary evaporator with electric lift


Industrial 50L rotary evaporator with electric lift


Industrial 50L rotary evaporator with electric lift



Technical Data


ModelR1005R1010R1020R1050
Optimum ambient temperature (c)5~35
Working power supply (V/Hz)Single phase 220/60Three phase 220/380/60
Main engine speed controlDigital frequency conversion stepless speed   regulationDigital direct current stepless speed regulation
Main engine speed (RPM)10~14020~13020~110
Rotary electric machine (W)40Brushless 250
Temperature control (c)Digital display temperature control, room   temperature -99
Maximum vacuum (Pa)399.9(Below 3mmHg)
Rotating bottle (L)5LFlange 5010LFlange 12520L
Flange 125
50LFlange 125
Recovery bottle (L)351020

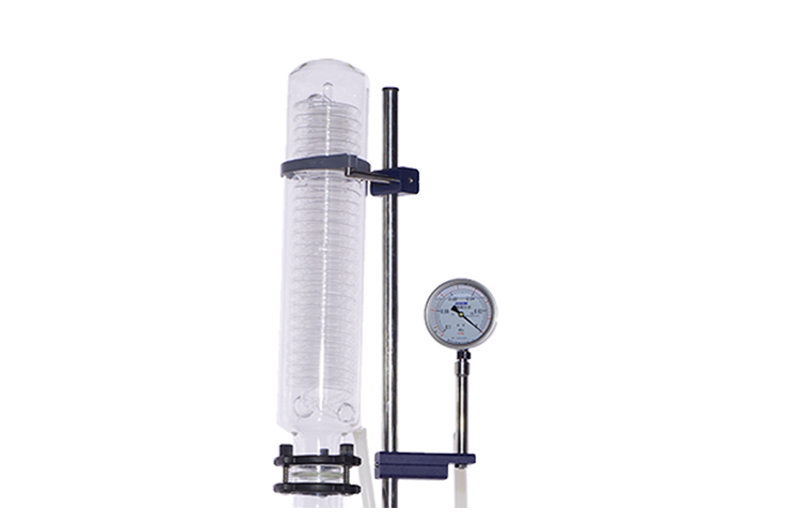

condenser tubeVertical double coilThe vertical main cold + cold side, high   efficiency reflux condenser
Evaporation capacity (L/h)The water is more than 2Alcohol is more than 4The water is more than 3.2 Alcohol is more than 6.5The water is more than 5Alcohol is more than 11The water is more than 9Alcohol is more than 19
Water bath pot materialstainless steel
Water bath pot size (mm)Φ300×170Φ350×220Φ450×260Φ550×320
Lifting functionElectric liftElectric + hand lift
Lift stroke (mm)0~1500~1600~1900~180
Whole power (kW)2.24.84.88.3
Outline dimension (mm)765×400×1070920×550×17001250×600×21001320×770×2340



We are professional manufacturer!!! We supply turnkey solution for you. If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!


*
*
*
*
