Industrial 50L rotary evaporator with hand lift

Industrial 50L rotary evaporator with hand lift
  • Industrial 50L rotary evaporator with hand lift
  • Industrial 50L rotary evaporator with hand lift
  • Industrial 50L rotary evaporator with hand lift

Industrial 50L rotary evaporator with hand lift


Industrial 50L rotary evaporator with hand lift is widely used in the process like concentration, refining, separation, crystallization, etc. Rotary evaporator is mainly applied in Bio-chemical, Pharmaceutical and fine-chemical trades .

Industrial 50L rotary evaporator with hand lift

Main featurers

1.use international advanced airtight system, can maintain a high degree of vacuum.Gas liquid separation, no reture.

2.The main performance of double condenser,ensuring a high recovery rate

3.the bottle with the nut connection is convenient for loading and unloading

4.The collection bottle mouth with liquid discharge valve,recovering solvent is very fast.

5.Collecting bottle is arranged with between the side condenser vacuum check valve,liquid discharge does not affect the vacuum evaporation can be continuously.

6.vacuum system with vacuum gauge, on low boiling point materials adjustable optimal working vacuum degree

7.water bath pot electronic temperature control,and can be lifted up and down.

8.Reasonable structure,materials stress. Mechanical structure using a large number of stainless steel and aluminum alloy parts.Glass parts all with GG-17 high borosilicate glass.

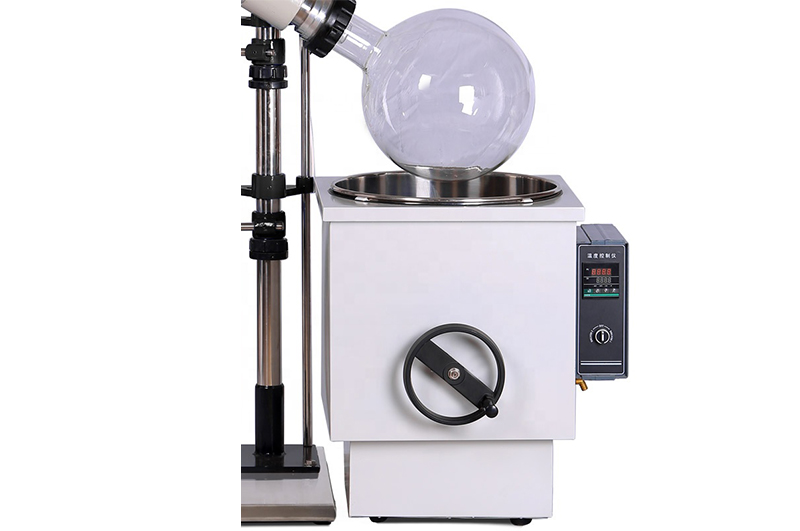

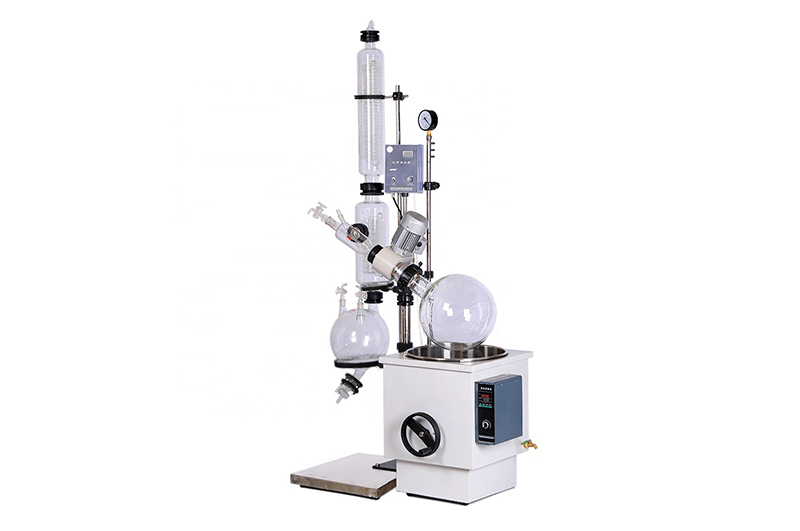

Product detail

Industrial 50L rotary evaporator with hand lift



Industrial 50L rotary evaporator with hand lift


Application

A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.


Technical data

Basic ParameterTypeRE-1002RE-2002RE-3002RE-5002
Glass MaterialGG-17
Shell MaterialAntisepsis Plastic Spraying
Inner Container Materialstainless steel 350*220mmstainless steel 450*250mmstainless steel 500*280mmstainless steel 500*220mm
Baseboard Size474*474mm534*504mm800*574mm804*574mm
Volume of Rotary Bottle10L ¢95 flange aperture20L ¢9530L ¢12550L ¢125
Volume of Recycling Bottle5L ¢50 flange aperture10L ¢6020L ¢6020L ¢60
Vacuum Degree0.098Mpa
Rotating Power120W180W
Rotating Speed0-110rpm
Heating Power3KW5KW8KW
Temperature Control Range of Bath Kettle400℃
Temperature Accuracy±1℃
Voltage/Frequency (V/Hz)220V/50Hz
Up and Down Distance180mm
Shape Size(mm*mm*mm)970*480*19501170*540*22001520*620*24701520*620*2470
Package Weight (KG)100123170170
FunctionAllocationSpeed Adjustment ModeElectrodeless Speed Regulation
Rotate Speed Display ModeDigital Display
Temperature Display ModeDigital Display K Type Sensor
Temperature Control ModeSmart Temperature Control
Sealing ModePTFE Sealing
CondenserVertical efficient condenser
Up and Down ModeManual Up and Down of Bath Kettle
Continuous Charging29#Standard Aperture Feeding Valve29#40#40#
Vacuum Display ModeVacuum Meter
Continuous CollectingCheck valve control
Charging ModePTFE Charging valve, ¢50 flange aperture¢60¢60¢60








We are professional manufacturer!!! .We supply turnkey solution for you. If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!

*
*
*
*
