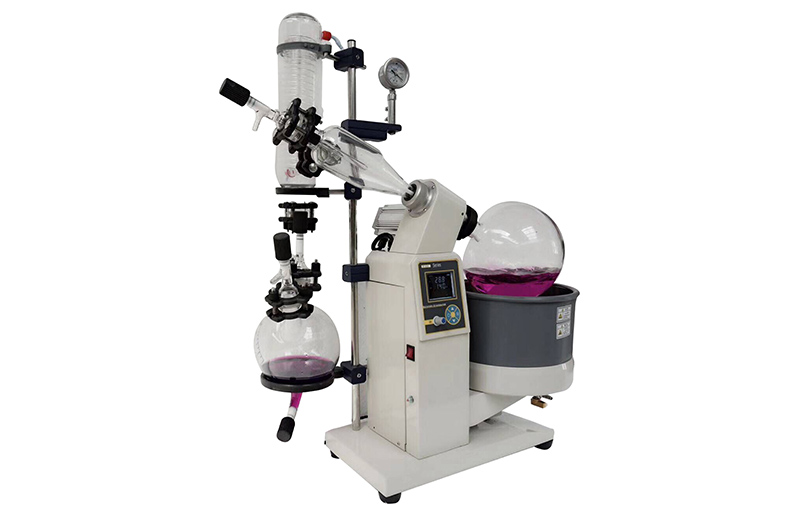

5L Rotary Evaporator with electric lift

Inquire Now Send Email

5L Rotary Evaporator R-1005 with electirc lift for sale

Application of 5L rotary evaporator with electic lift

Its an ideal tools for many everyday laboratory applications including:
• Concentration of solutions
• Reclamation of solvents
• Vacuum drying of wet solids
• Degassing liquids
Mainly used in pharmaceutical, Biotechnology and Chemistry.

Features of rotary evaporator
- Teflon (PTFE) and fluorine rubber double seal, patent technology to ensure high vacuum.
- Introduction of foreign advanced frequency conversion ,temperature control system, accurate and reliable.
- The vacuum switching valve, can be collected in a row without affecting the vacuum distillation condition.
- The water bath electric lifting and manual lifting facilities, convenient to use.
- The PTEE discharge valve, corrosion resistance, no pollution.
- The heating pot cover to prevent burns.

•Double layer cooling coils for improved condenser performance.

•Easy assembling design: to be assembled within 30 minutes.

•1-year complimentary warranty included.

•Large selection of volumes from 0.25L to 50L

•PTFE coated heating bath.

•Guarenteed assistance from our biochemical equipment experts within 12 hours.

•High quality borosilicate glass 3.3 with excellent physical and chemical properties.

Technical data

Model	R1005	R1010	R1020	R1050
Optimum ambient temperature (c)	5～35
Working power supply (V/Hz)	Single phase 220/60		Three phase 220/380/60
Main engine speed control	Digital frequency conversion stepless speed regulation	Digital direct current stepless speed regulation
Main engine speed (RPM)	10～140	20～130		20～110
Rotary electric machine (W)	40	Brushless 250

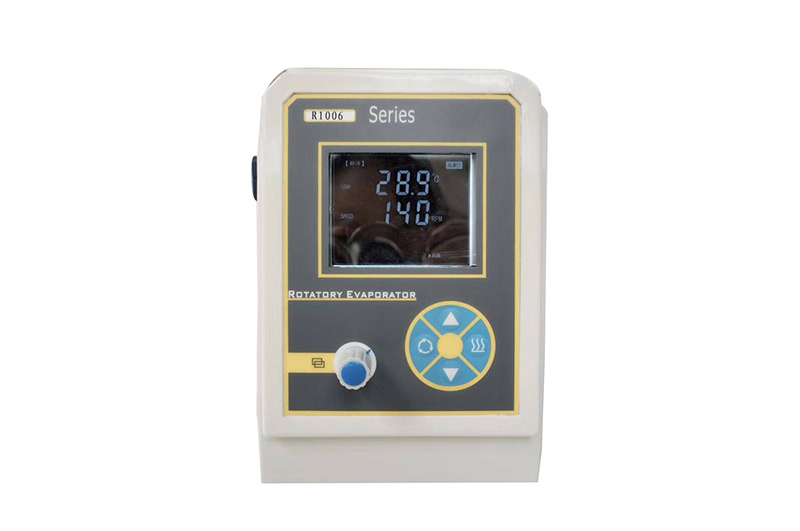

Temperature control (c)	Digital display temperature control, room temperature -99
Maximum vacuum (Pa)	399.9（Below 3mmHg）
Rotating bottle (L)	5LFlange 50	10LFlange 125	20LFlange 125	50LFlange 125
Recovery bottle (L)	3	5	10	20
condenser tube	Vertical double coil	The vertical main cold + cold side, high efficiency reflux condenser
Evaporation capacity (L/h)	The water is more than 2Alcohol is more than 4	The water is more than 3.2 Alcohol is more than 6.5	The water is more than 5Alcohol is more than 11	The water is more than 9Alcohol is more than 19
Water bath pot material	stainless steel
Water bath pot size (mm)	Φ300×170	Φ350×220	Φ450×260	Φ550×320
Lifting function	Electric lift			Electric + hand lift
Lift stroke (mm)	0～150	0～160	0～190	0～180
Whole power (kW)	2.2	4.8	4.8	8.3
Outline dimension (mm)	765×400×1070	920×550×1700	1250×600×2100	1320×770×2340

We are professional manufacturer!!! .We supply turnkey solution for you! If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!
