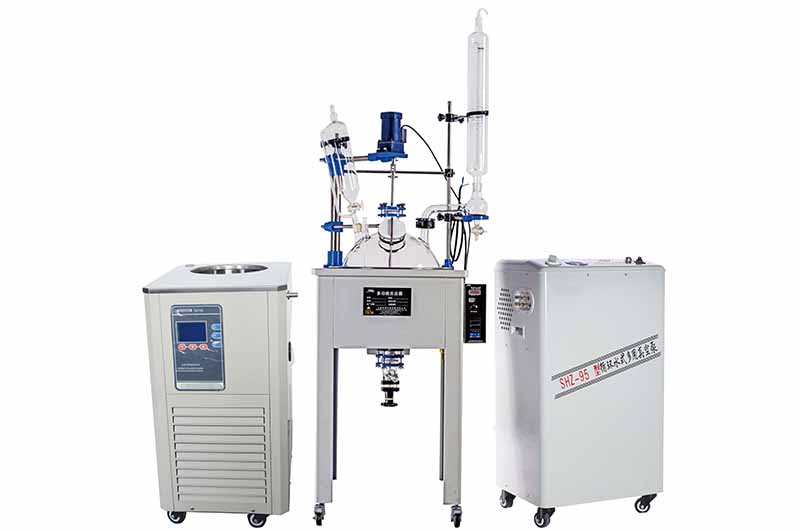

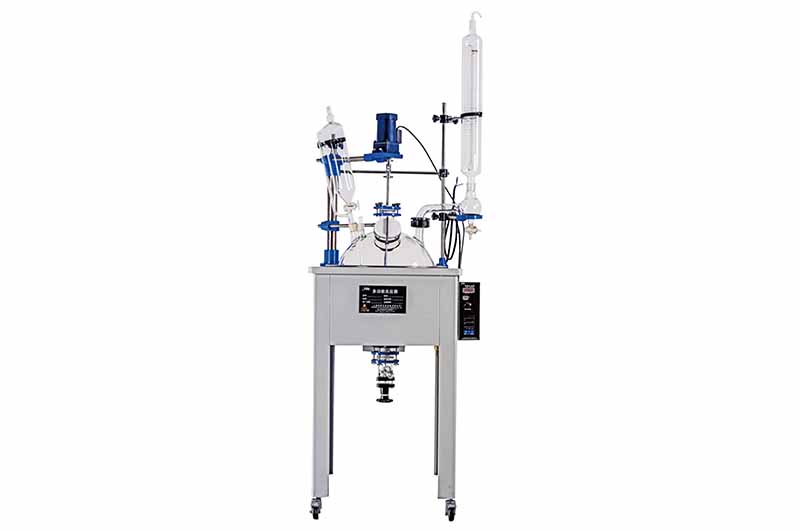

30L Single layer glass reactor

Brief introduction

Single-layer glass kettle body design, through the water/oil bath or heating mantle to directly heat the kettle body. To make the material react with constant temperature, and can provide a stir, In the set under the condition of constant temperature ,In the airtight container, under atmospheric pressure or negative pressure to mixing and reaction and can be done the reaction solution reflux, distillation and extraction. It’s the ideal equipment in the modern chemical samples, the experiment and the synthesis of new materials, biological chemical.


1.All the PTFE material valve, no put pleural effusion, no leakage, corrosion resistance.

2.Frequency control, AC induction motor, digital display and constant rotary speed ,no brush, no spark, safe and stable and continuous working

3.GG-17 high borosilicate glass owns good chemical and physical properties, big bottle mouth, hand-in cheaning

4.PTFE sealing mechanical components with proprietary technology, maintaining the best vacuum degree(-0.098Mpa)

5.With brake casters, convenient and reliable for moving

6.It can be used as a distillation syntheses device

7.LCD display,easier and more convenient to measure temperature

8.Heating equipment can use water/oil or heating matle.

Technical Data

Basic parameterModelF-10F-20F-30F-50F-100
Volume of the   reactor bottle10L20L30L50L100L
Glass materialGG-17 high   borosilicate glass
Spraying   plastic anti-corrosion shell size(mm)540*440*860640*540*890690*590*920740*640*960640*640*1200
Stainless steel   container size(mm)350*220450*250500*280550*320550*650
Reaction bottle   numberSpherical shape   7 pieces6
Lifting of   discharging port450mm
Reaction   temperature-80-250℃
Vacuum degree0.098Mpa
Stirring speed0-450rpm
Stirring shaft   diameter15mm
Stirring power90W 1/3120W 1/3200W 1/3   220V/50HZ
Heating power3KW5KW8KW8KW 380V/50HZ
Overall   dimension(mm)600*400*1900700*540*1950750*590*2160800*640*2200730*630*2600
Packing   dimension(mm)1100*620*7901220*620*7901220*660*8601440*720*8901900*780*870
Package   weight(KG)63708090120
Function deviceElectrical   machineLow speed   reinforcement electric machine, speed rate 3: 1
Rotating speed   display modeLiquid crystal   digital display
Pot temperature   display modeDigital display
PTFE sealing¢70 Flange stirring port¢70
Backflow(distillation)   deviceBackflow elbow   with discharging switch, 50# ground port
Drop device1L/34 standard   port2L/34 standard   port2L/40
Pressure reduce   device34# standard   port pressure reduce valve
Temperature   measuring tube24# standard   port
Solid   discharge(washing) port¢120 flange port with PTFE cover¢80
Discharging   methodInclined   discharging glass valve, ¢80 flange port¢80
Vacuum display   methodVacuum meter
Stirring   connection methodUniversal joint   connection
Stirring rodAnchor type   stainless steel rod, covered with PTFE
Our laboratory   equipment can be customized according to customers actual needs .

We are professional manufacturer!!! . If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!
