laboratory 5L Rotary Evaporator with hand lift

laboratory 5L Rotary Evaporator with hand lift
  • laboratory 5L Rotary Evaporator with hand lift
  • laboratory 5L Rotary Evaporator with hand lift
  • laboratory 5L Rotary Evaporator with hand lift

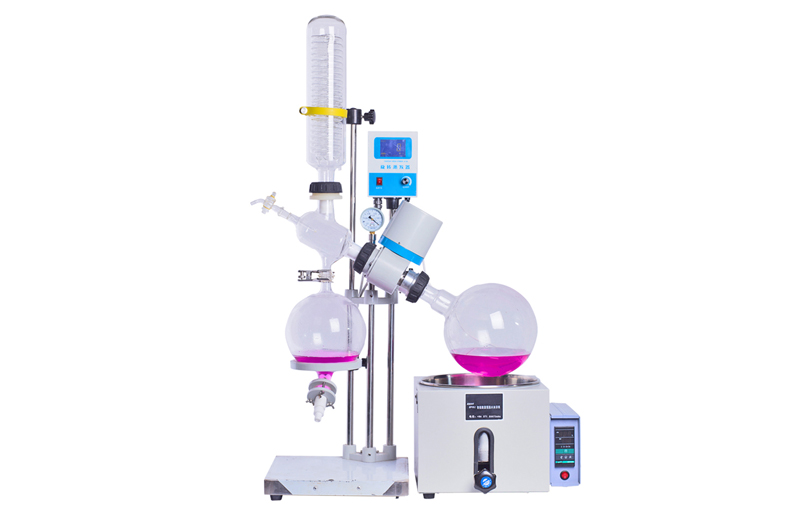

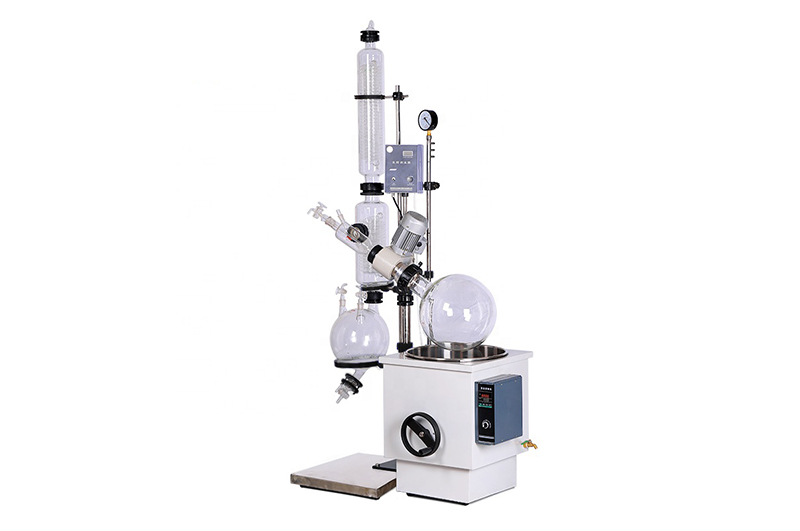

RE-501 5l rotary evaporator

RE-501 rotary evaporator's maximum capacity is 5000ml, rotate speed is 5-120r.p.m, motor power is 40W. RE-501 rotary evaporator is the basic rotary evaporator series product of Henan Lanphan at present, it has manual up and down handle. The independent developed and elaborate designed machinery and glass components can accurately set the location of glass component. The digital display rotate speed and heating kettle's temperature helps you optimally control all distillation process. New type fixation system greatly simplified the operation process of changing evaporating flask.

5L Rotary Evaporator

Main Features

1. The main bracket adopts stainless steel + aluminum alloy.

2. The sealing system adopts PTFE and imported fluorine rubber combination seal.

4.All glass parts using high borosilicate glass (GG-17).

5. Continuous feeding is convenient for customers to use, the valve type feeding pipe is sheathed with tetrafluoroethylene tube.

6.Vertical double coil coil condenser, ensure high recovery, additional tubes.

7. Microcomputer ON-OFF power switch control.

8. Bath pot digital display, intelligent constant temperature control, K type sensor fast and accurate delivery temperature.

9. Electronic stepless speed regulation (0-120rpm), speed digital display, rotation and torsion settings, easy to operate.

10. Fuse safety protection.

11. The pot adopts high quality stainless steel, corrosion resistant and durable.

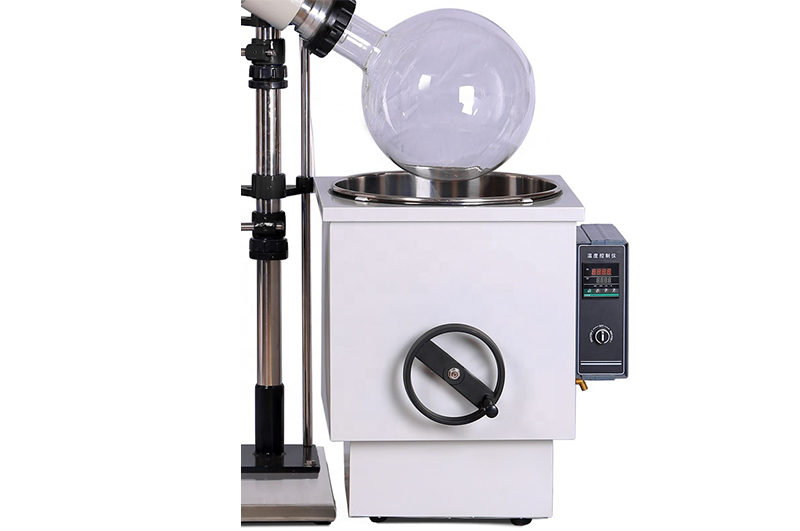

12. Bath pan hand wheel lifting.

13. The collection bottle is equipped with a transfer material to facilitate the collection and discharge of evaporation extracts.

Product Detail

5L Rotary Evaporator

5L Rotary Evaporator

Product Application

A rotary evaporator (or rotavap/rotovap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. When referenced in the chemistry research literature, description of the use of this technique and equipment may include the phrase "rotary evaporator", through use is often rather signaled by other languages (eg, "the sample was evaporated under reduced pressure").

Technical data

Basic ParameterTypeRE-201DRE-301RE-501
Glass MaterialGG-17
Shell MaterialAntisepsis Plastic Spraying
Inner Container Materialstainless steel 250*140mmstainless steel 255*170mmstainless steel 280*170mm
Baseboard Size280*330mm350*330mm350*330mm
Volume of Rotary Bottle0.25-2L 24# standard aperture3L ¢505L ¢50
Volume of Recycling Bottle1L 24#standard aperture2L 35#3L 35#
Vacuum Degree0.098Mpa
Rotating Power40W
Rotating Speed0-110rpm
Heating Power1.5KW2KW
Temperature Control Range of Bath Kettle300℃
Temperature Accuracy±1℃
Voltage/Frequency (V/Hz)220V/50Hz
Up and Down Distance120mm
Shape Size(mm*mm*mm)700*440*885700*440*885700*335*1009
Package Weight (KG)213840
FunctionAllocationSpeed Adjustment ModeElectrodeless Speed Regulation
Rotate Speed Display ModeDigital Display
Temperature Display ModeDigital Display K Type Sensor
Temperature Control ModeSmart Temperature Control
Sealing ModePTFE Sealing
CondenserVertical efficient condenser
Up and Down ModeManual Up and Down of Bath Kettle
Continuous Charging19#Standard Aperture Feeding Valve19#19#
Vacuum Display ModeVacuum Meter

We are professional manufacturer!!! . If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!
