200ml Hydrothermal Synthesis Reactor

200ml  Hydrothermal Synthesis Reactor
  • 200ml  Hydrothermal Synthesis Reactor
  • 200ml  Hydrothermal Synthesis Reactor
  • 200ml  Hydrothermal Synthesis Reactor
  • 200ml  Hydrothermal Synthesis Reactor

Brief Indroduction:

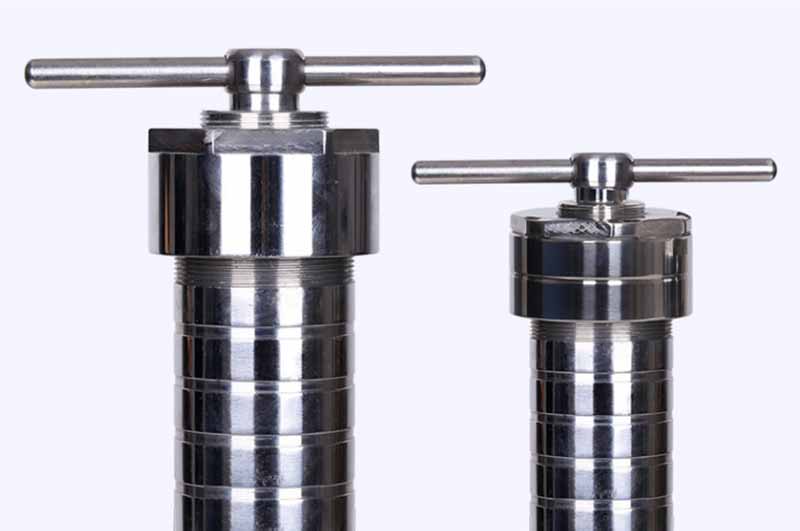

  KH series Hydrothermal synthesis reactor is used in catalysis, crystal, polymer and other experiments, it adopts the external heating mode. In order to reduce the size, and be suitable for several reaction kettles working at the same time and same reaction temperature (for example, put several reactors inside the oven for heating), special models can be customized.

  KH series hydrothermal synthesis reactor is used to make new synthetic chemicals under a certain temperature and pressure. It is widely used in new materials, energy, environmental engineering and other fields of scientific research and experiments, it is a small commonly used reactor used in teaching and scientific research.

Main Characteristic:
1. Using high-quality 0Cr18Ni9Ti nonmagnetic stainless steel.
2. The kettle body and the cover are sealed by a durable, reliable sealing structure, the sealing effect could be long-term stable without leakage.

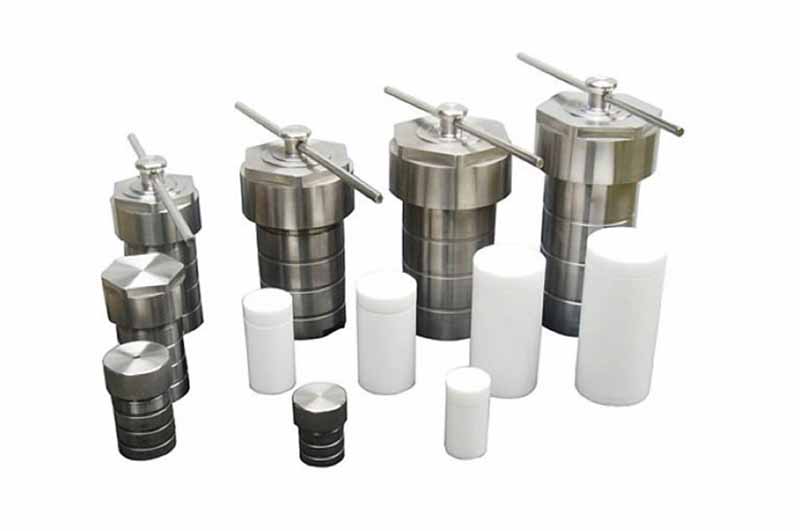

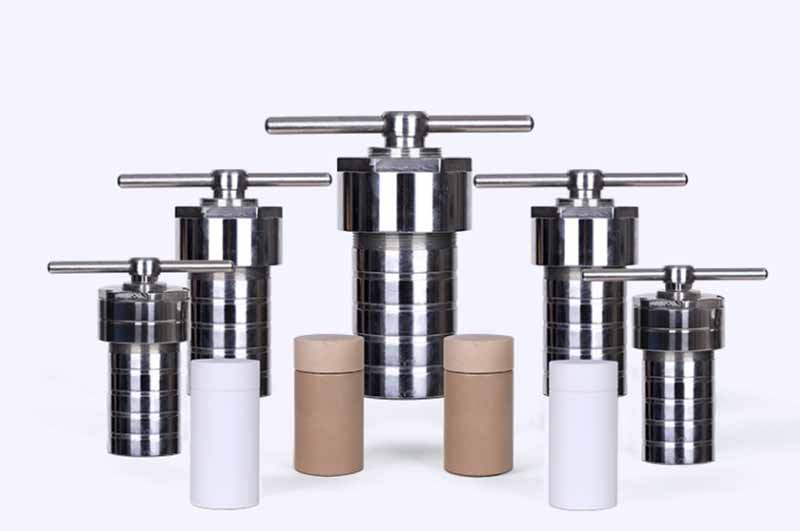

3. Complete PTFE material liner, with excellent acid resistance and alkali resistance.


Main Technical Details:
1. Working Temperature: ≤200°C
2. Working Pressure: ≤3MPa (Pressure Gauge)
3. Heating and Cooling Rate: ≤5°C/min

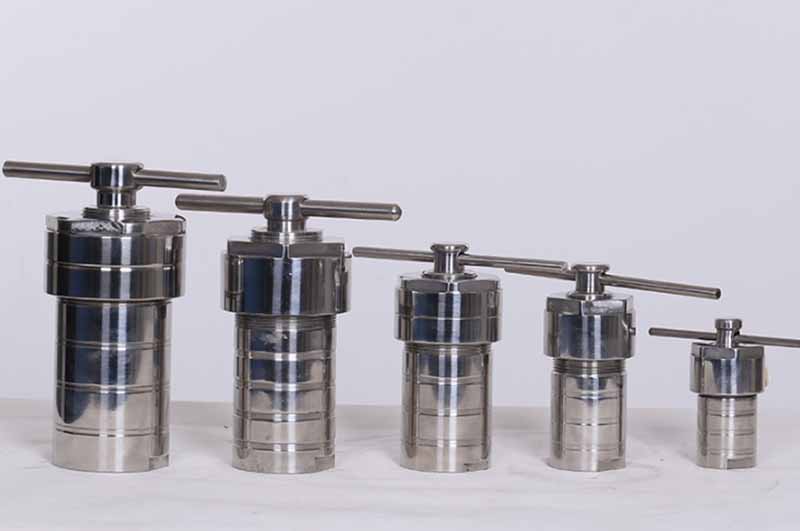

4. Specification: 25ml, 50ml, 100ml, 150ml, 200ml, 250ml. 500ml.1000ml



 Hydrothermal Synthesis Reactor
ModelKH-25KH-50KH-100KH-150KH-200KH-250KH-500KH-1000
Material Kettle body is stainless steel and   the liner is PTFE
Capacity(ml)25501001502002505001000
RemarksSafe temperature is 200. Max. Pressure is 3 Mpa

Also we can offer customized size according to users’ need.




*
*
*
*
