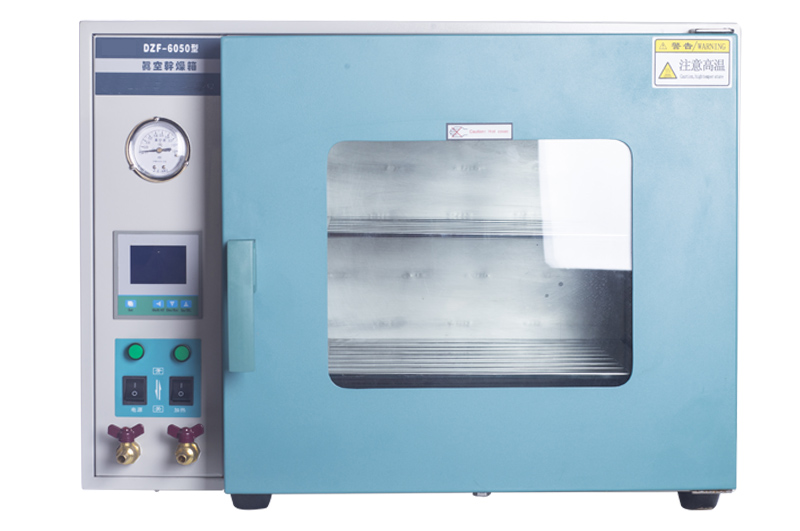

Vacuum dry oven

Vacuum dry oven
  • Vacuum dry oven
  • Vacuum dry oven
  • Vacuum dry oven
  • Vacuum dry oven
  • Vacuum dry oven

Brief introduction:

Vacuum Drying oven widely used in biochemical, chemical and pharmaceutical, health care, agricultural research, environmental protection and other research applications for powder Drying and roasting, as well as disinfection and sterilization of glass containers used. Particularly suitable for Drying heat-sensitive, easily decomposed, and the complex composition of easily oxidized material items for fast and efficient Drying

Product feature:

1. Effective, gentle drying without damaging the material being dried.

2. Vacuum drying also minimizes the risk of scaling and the formation of oxidation residues.

3. coordinated, modular system with vacuum pump and vacuum module.

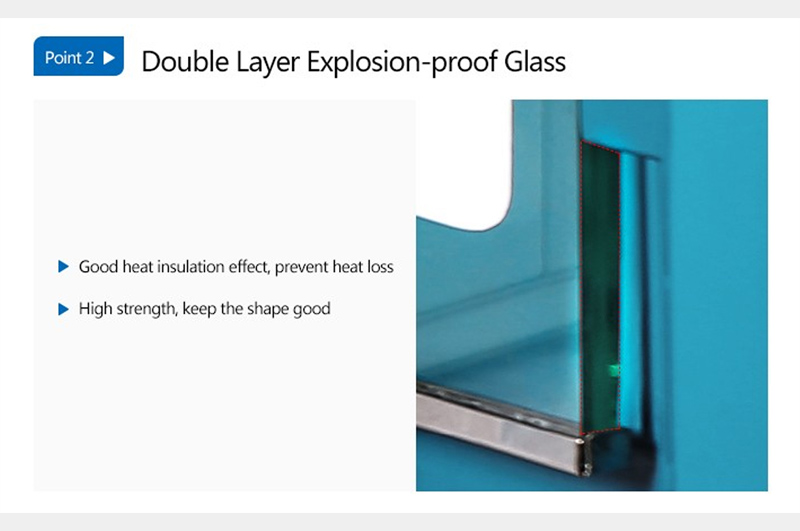

4. 6020,6050 both adopt jacketed vacuum glass door. On one hand, it keeps the temp in room; onthe other hand you can see the dried instruments clearly.

5. The vacuum tube around makes room temperature more uniform, avoiding organic connectingwith fires burring. Set temp and control are all intelligent digital display, high accuracy.

6. Temperature range from ambient +5 °C to 250 °C.

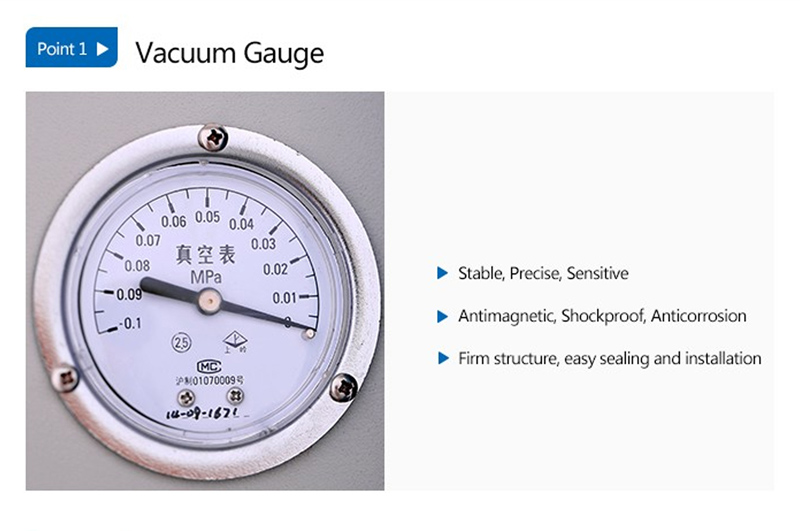

7. Vacuum range: 0 to 0.1 MPa. (analog vacuum gauge) - Drying a solvent in vacuum lowers its boiling point, thereby making the separation process easier and eliminating the need to use high temperatures.

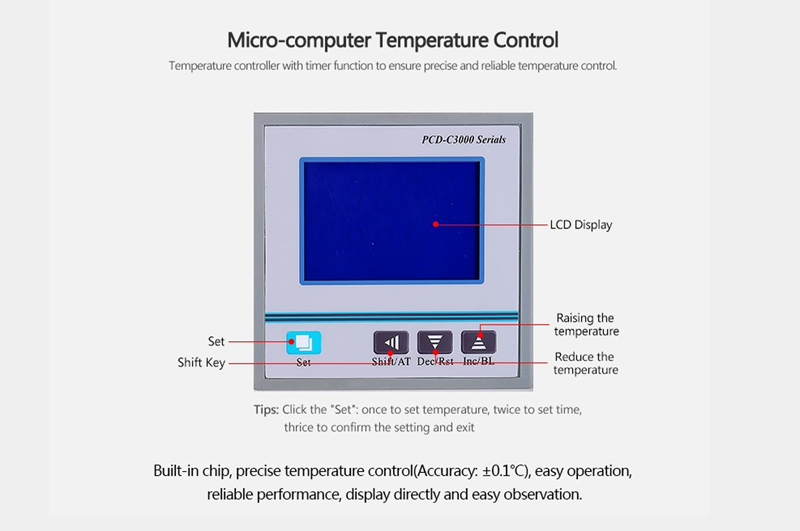

8. Microprocessor PID control / Temperature calibration / Automatic tuning.

9. Uniform heat distribution from block type heater attached to the chamber exterior to the anodized aluminum shelves.

Technical Data:

Power   Supply(V/Hz)220V   50/60  /110V/60Hz
Shell   MaterialSpray-paint   Anti-corrosion
Liner   Material304   Stainless Steel
Temp.   Range(℃)    RT+10~200(250°C)
Temp.   Stability(℃)±1.0°C
Temp. Analysis(℃)0.1°C
Working   Temp.+5~40°C
Input   Power (W)4007001400200020602800
Chamber   Capacity (L)8255590430430
Inner   Dimension (W*D*H,mm)200*200*200300*300*270400*400*345450*450*450560*600*640630*810*845
Overall   Dimension (W*D*H,mm)630*420*460620*510*480710*580*530610*680*710720*820*1750790*1030*1855
Optional   Configuration                                            Explosion -proof
